Orban Optimod FM 5518 Stereo Encoder with Limiter

 3.299,00

This Orban Optimod 5518 FM is a high-quality stand-alone stereo coder. This device combines clipping techniques to control overshoots that occur at STL joints while minimizing distortion. This processor is also used in larger transmitter networks, where the main processor is located in the studio, and an Orban Optimod 5518 FM is placed at the various locations at each transmitter.

Category: Tags: , ,

This Orban Optimod 5518 FM is a high-quality stand-alone stereo coder. This device combines clipping techniques to control overshoots that occur at STL joints while minimizing distortion. This processor is also used in larger transmitter networks, where the main processor is located in the studio, and an Orban Optimod 5518 FM is placed at the various locations at each transmitter.

Features:

  • 64 – 512 kHz sample rates
  • Low-filter
  • left/right domain transgression limiting
  • compound limitation
  • diversity delay
  • ITU BS.412 multiplexed power controller
  • Compatible with all Orban Optimod FM processors, including, e.g., the 2200, 2300, 5300, 5500, 8000, 8100, 8200, 8300, 8400, 8500 and 8600.
  • Compatible with most other processor brands
  • LCD LED meters for setting, adjusting and programming
  • Navigation by “soft” push buttons (context-sensitive functionality) and large rotary knob
  • Patented “Half-Cosine Interpolation” composite limiter for full spectral protection of subcarriers and RDS / RBDS
  • Built-in ITU BS.412 multiplexed power regulator in accordance with European government regulations
  • 10 MHz frequency reference input to lock stereo pilot tone frequency to GPS or other high-accuracy frequency standard
  • Special stereo encoder with 1 Factory Preset for setting stereo encoder parameters
  • Save your own settings as User Presets

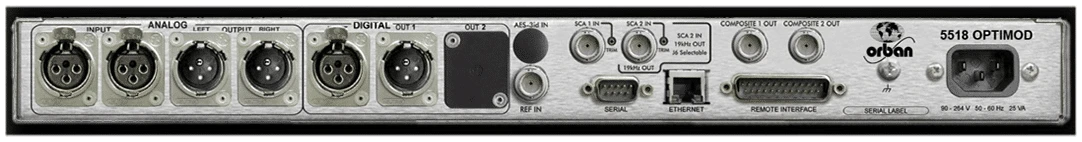

  • Input / Output Configuration:
    • Digital AES3 left / right I / O
    • Analog left / right I / O
    • Composite stereo outputs
  • Subcarrier inputs (SCA and RDS / RBDS).
  • Synchronize reference input for 10 MHz or 1x Wordclock (32, 44.1, 48, 88.2 and 96 kHz)
  • Remote control possible via 5 – 12V 8 programmable, optically isolated GPI (General Purpose Interface) ports
  • Selectable bandwidth to prevent overshoot in uncompressed digital links operating at sample rates of 32 or 44.1 kHz
