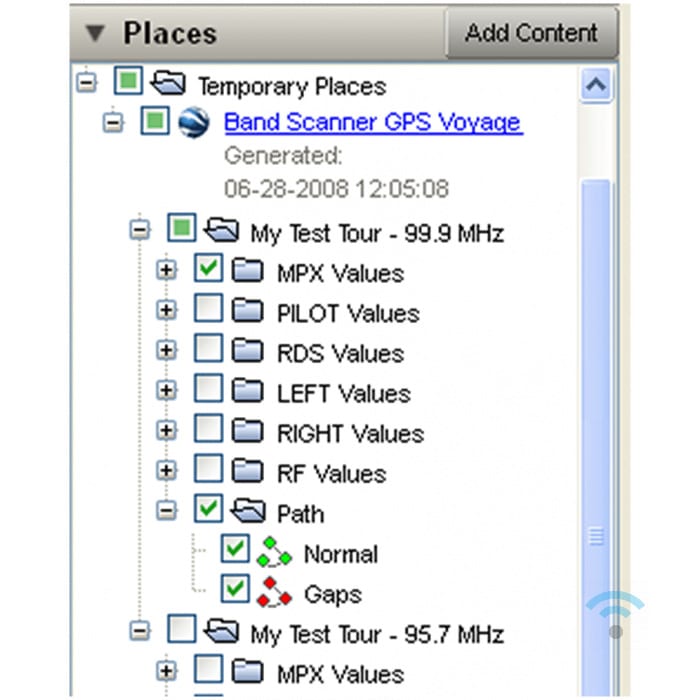

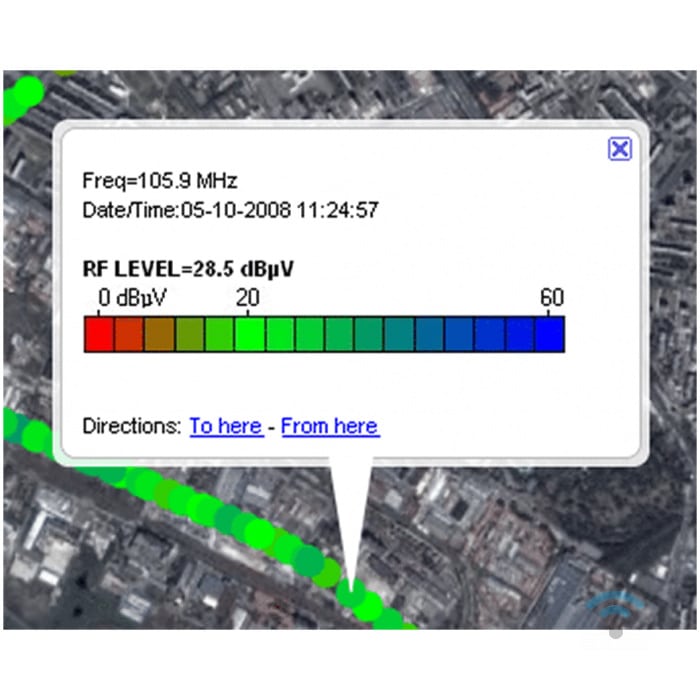

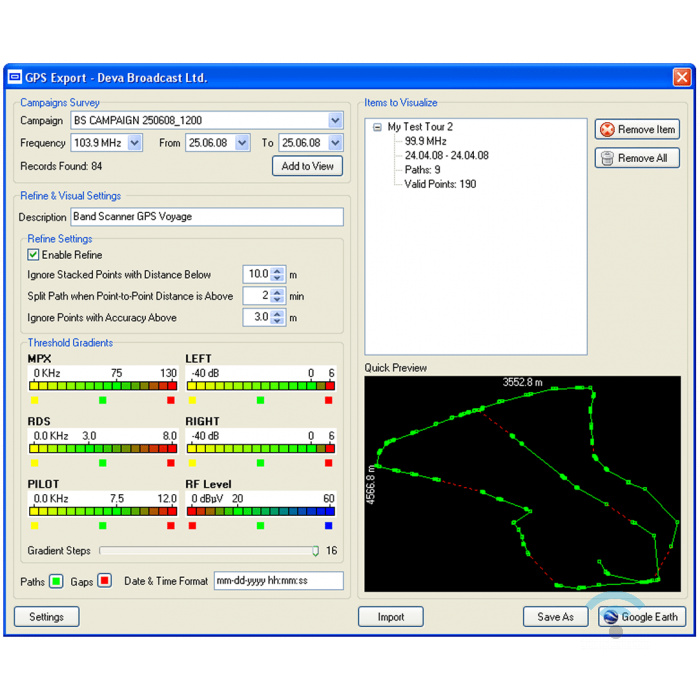

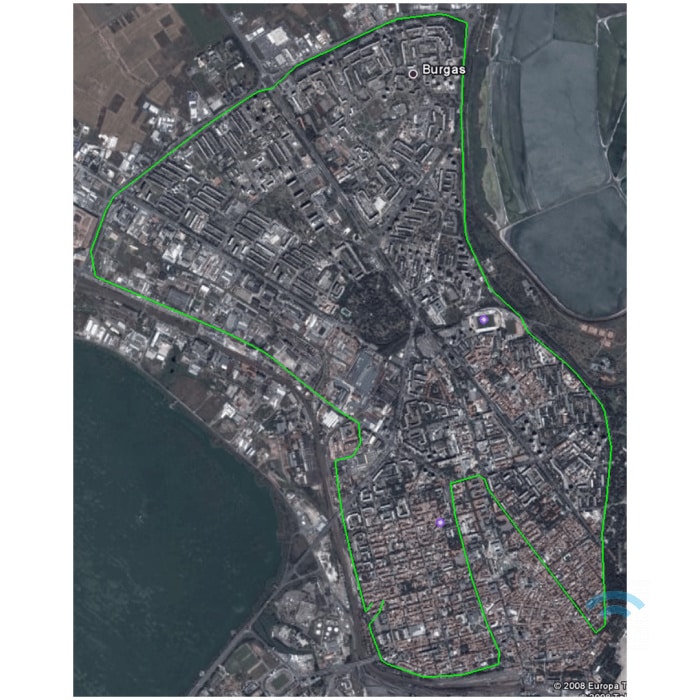

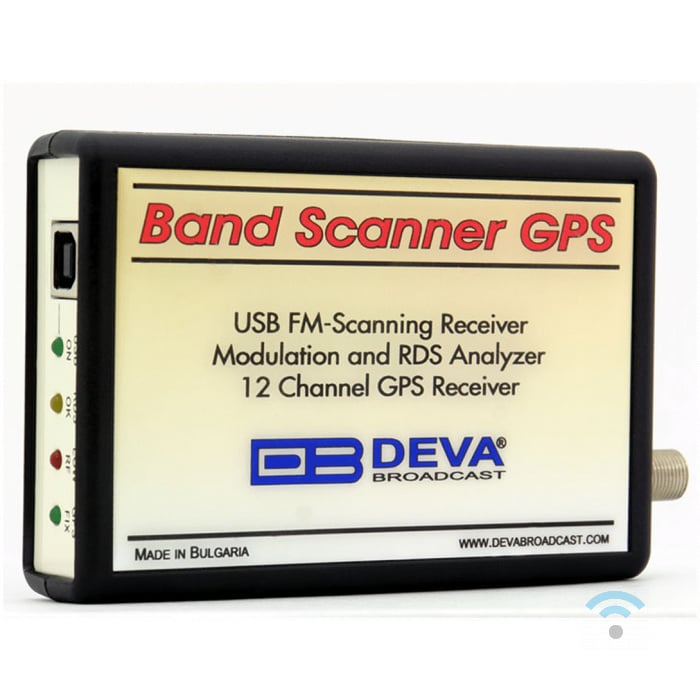

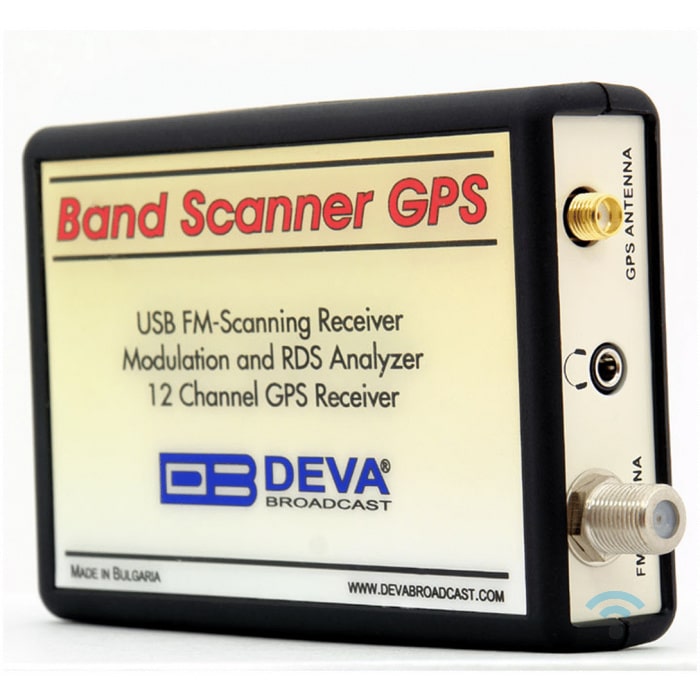

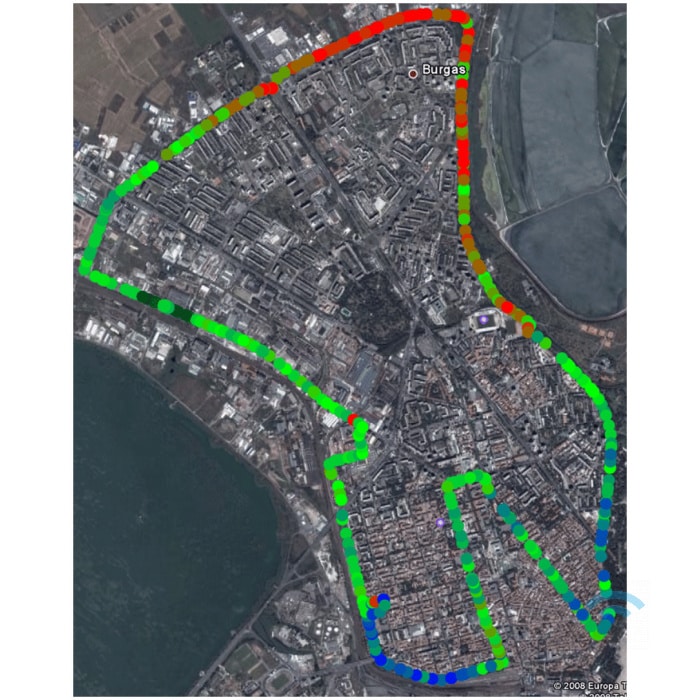

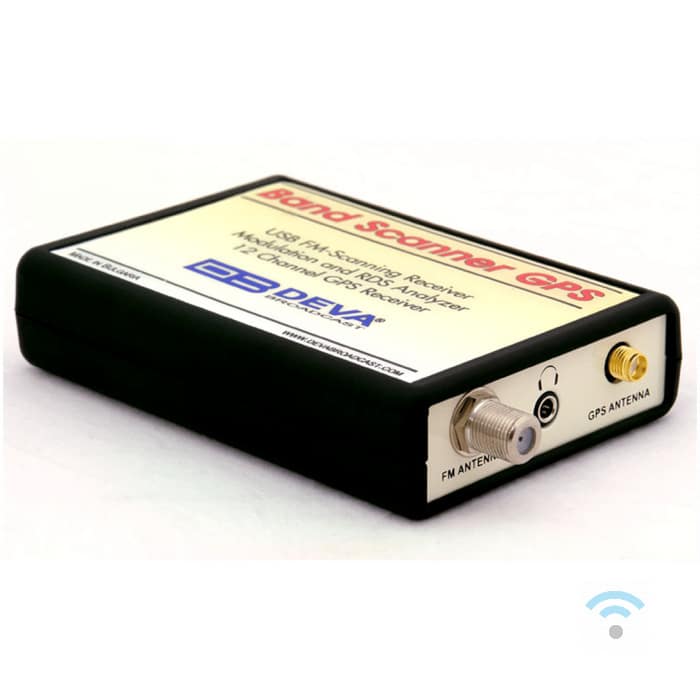

Discover the Band Scanner GPS, an FM Band Spectrum & Mod Analyzer with built-in RDS/RBDS Decoder-Reader and GPS receiver. This compact device is a versatile tool for evaluating band congestion and recording station parameters. Thanks to the built-in GPS receiver, the device generates a visual display of collected FM radio measurements in Google Earth-compatible formats (.kmz and more). This makes future analyses simple and effective.

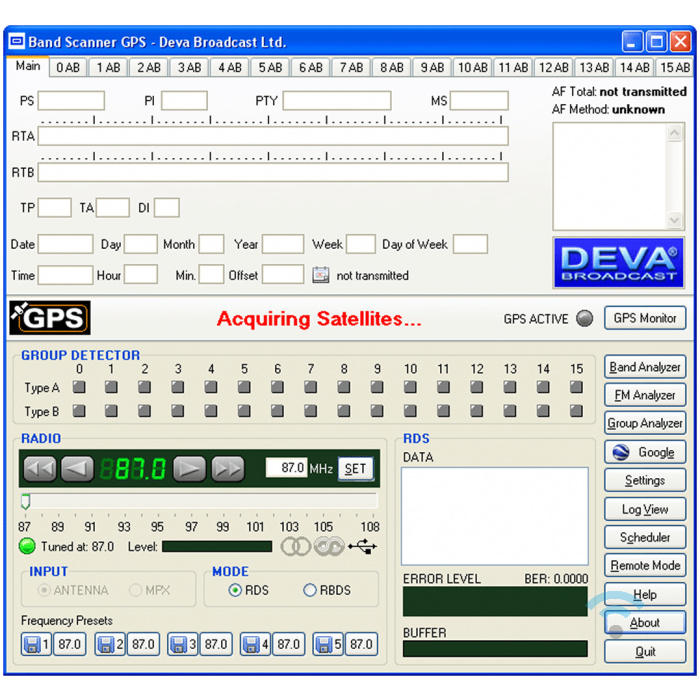

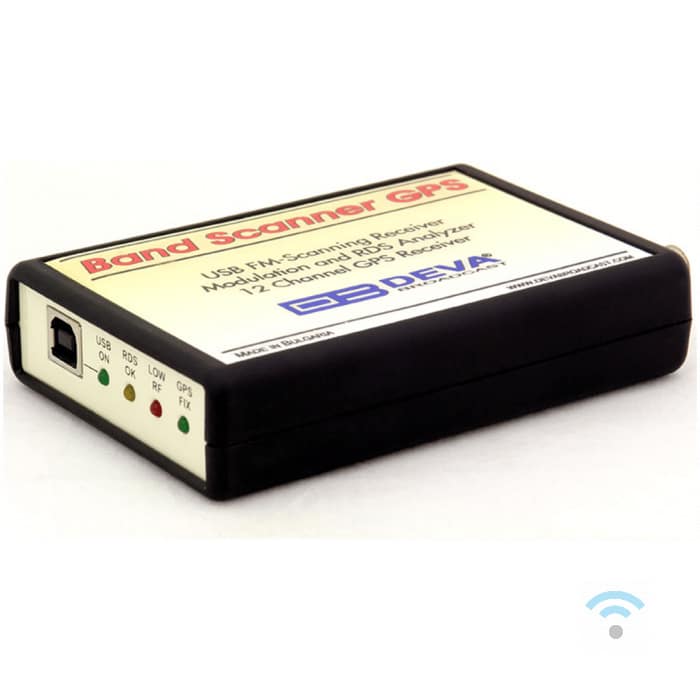

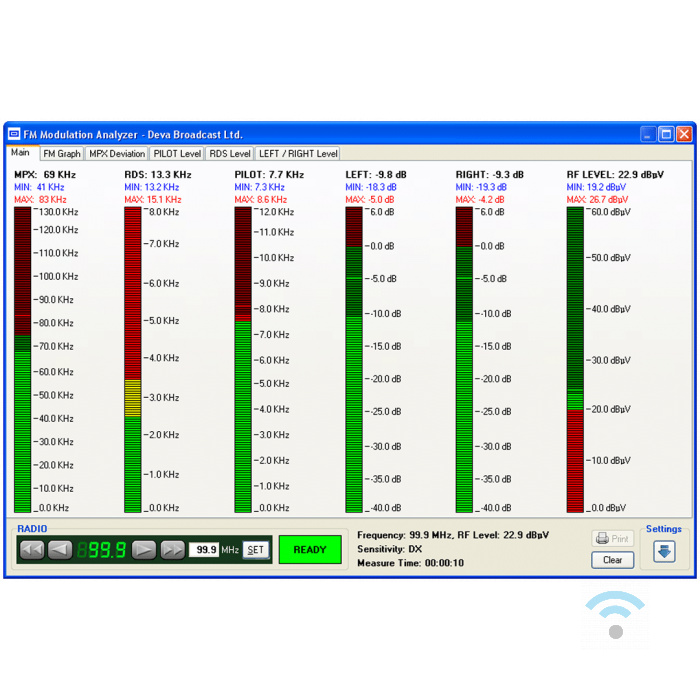

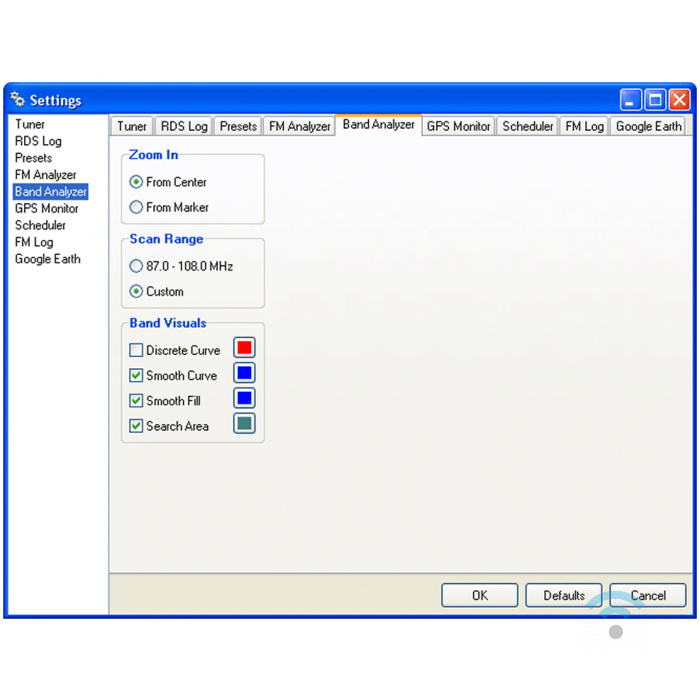

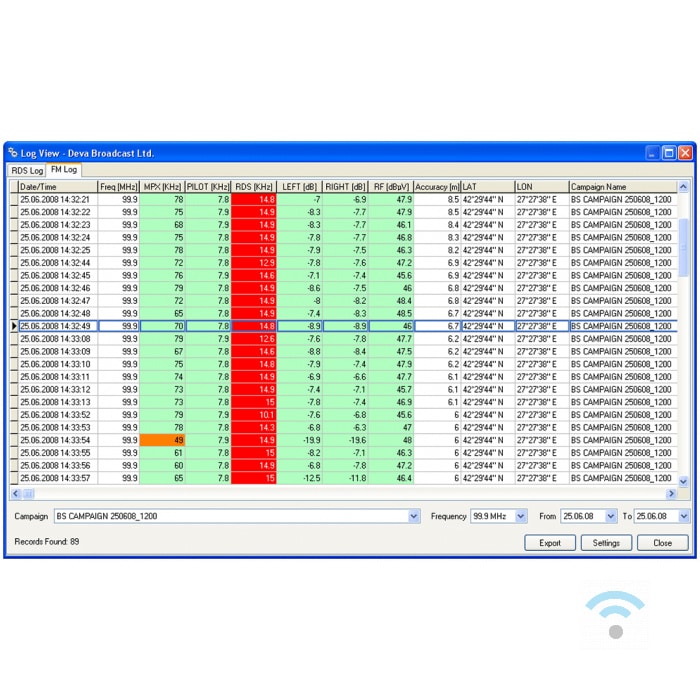

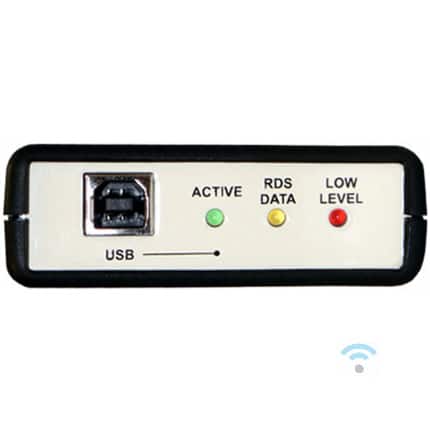

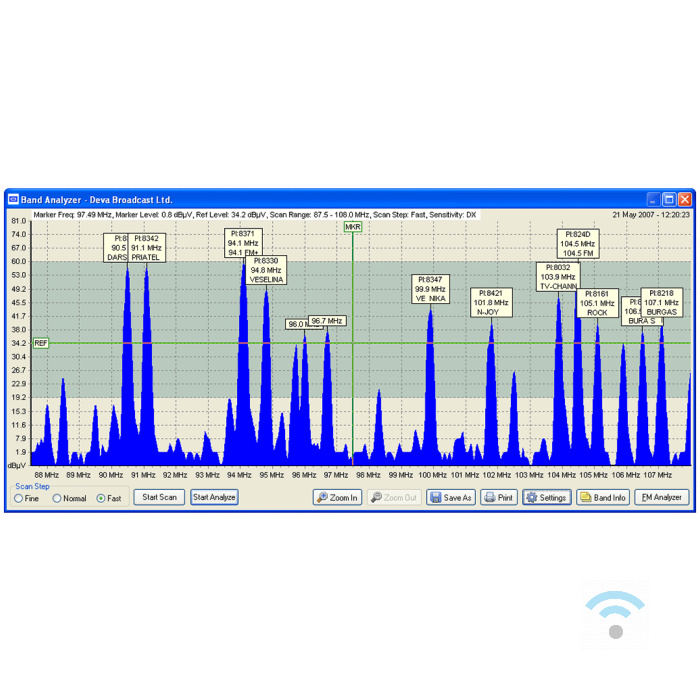

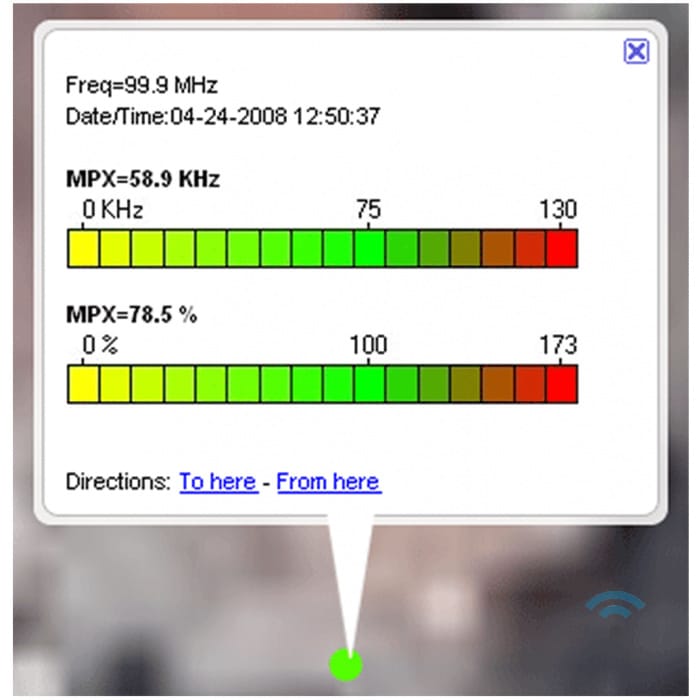

The Band Scanner GPS is portable and USB-powered, making it ideal for field work. It measures RF levels, MPX deviations, audio levels (left and right), RDS and pilot injection levels. The results can be displayed seamlessly in Google Earth. The band scan range includes 87 to 108 MHz. The included Windows software sweeps through the FM band, recording each carrier and generating a spectrum view of carrier level versus frequency, as well as a list of stations.
Product specifications:
- FM receiver
- Frequency range: 87.0-108.0 MHz
- RDS sensitivity: 0 error at Vrf=-90dBμV, 4KHz RDS deviation, no modulation

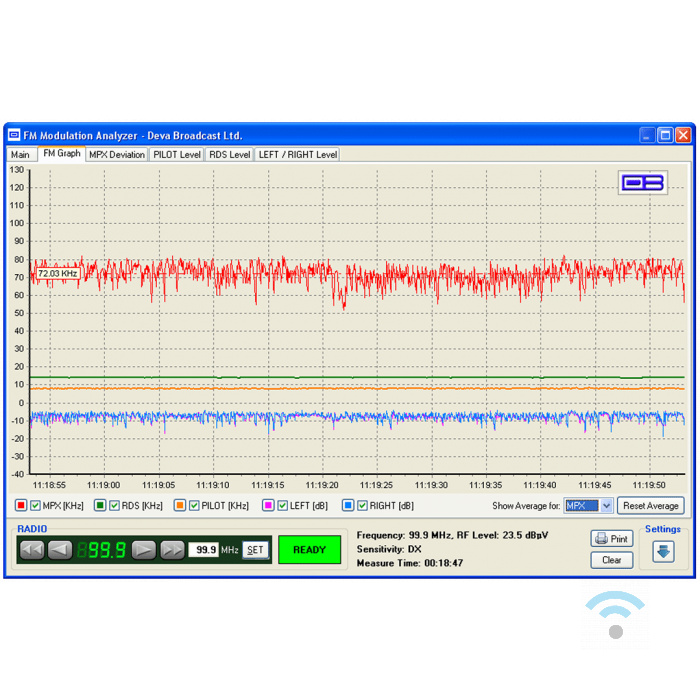

- Audio, MPX, Pilot, RDS Levels
- Validity measurement: RF level preferably > 50dB

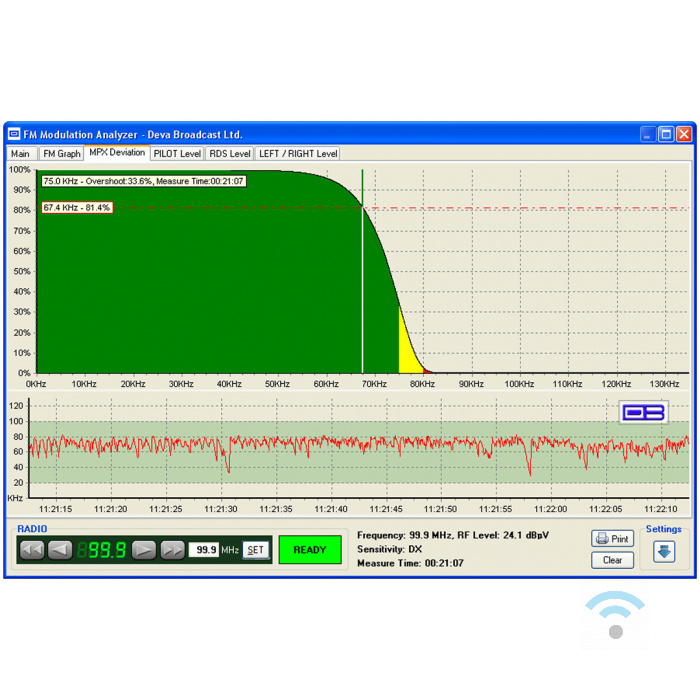

- Multiplex level: peak level displayed, 1000 samples for 1 second

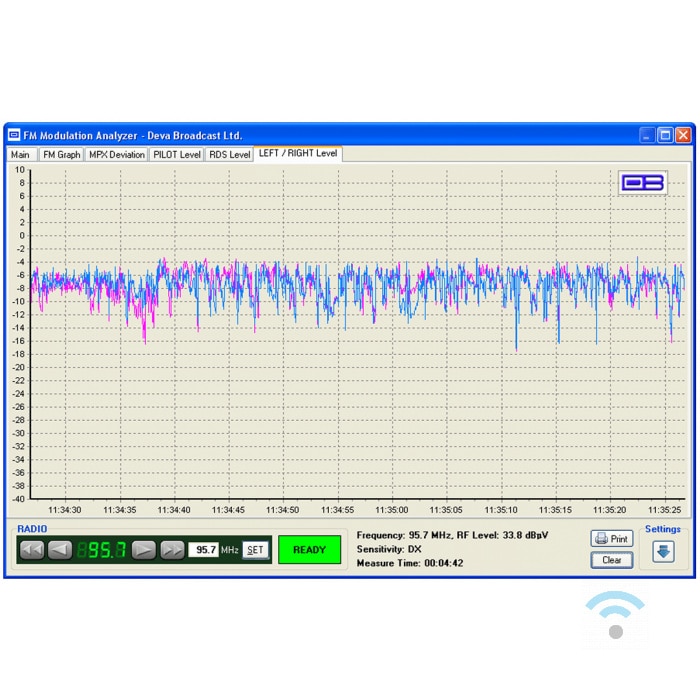

- Audio level: peak level displayed, 1000 samples for 1 second

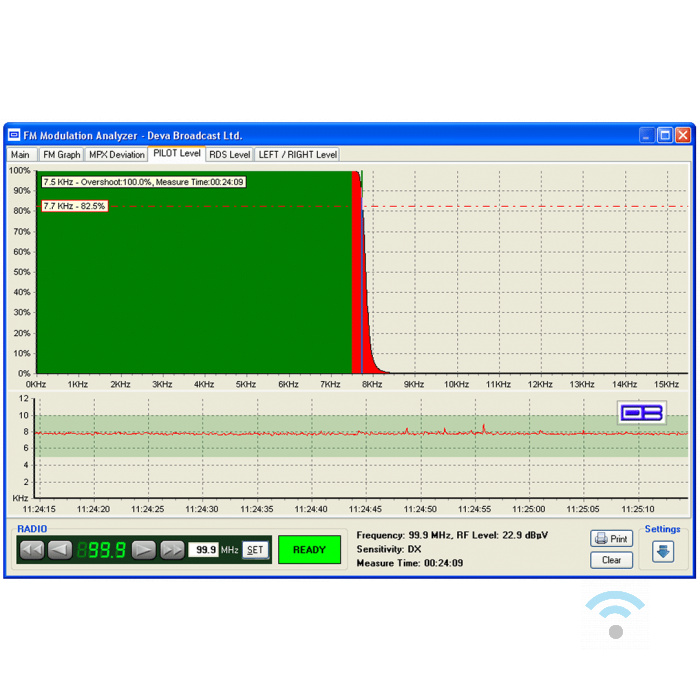

- Pilot level: Average peak level, 1000 samples for 1 second

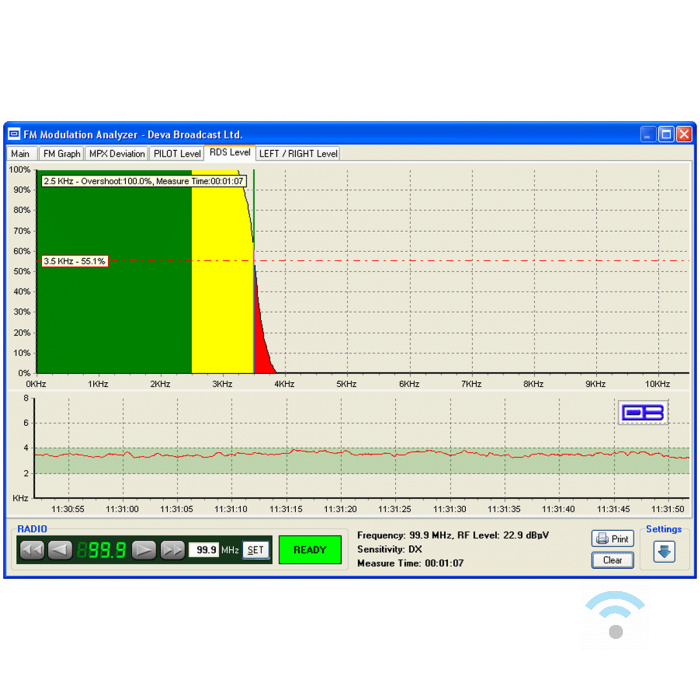

- RDS level: Average peak level, 1000 samples for 1 second
The Band Scanner GPS provides accurate measurements and is a valuable tool for professionals in the radio industry.
