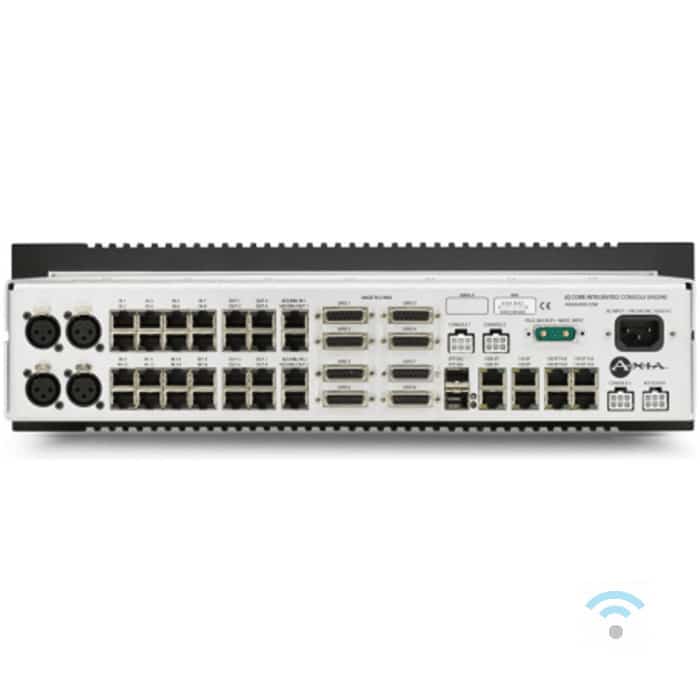

Discover the powerful Axia QOR.32 Integrated Console Engine, the beating heart of every iQ mixing console. This unit includes the DSP-based mix engine, all audio inputs and outputs, control logic and an Ethernet switch. Specifications:
- 4x mic inputs with selectable phantom power
- 16x analog inputs
- 8x analog outputs
- 2x AES/EBU inputs and outputs
- 8x GPIO machine-control logic ports, each with 5x opto-isolated inputs and 5x outputs
- Integrated Ethernet switch
- 6x Livewire 100Base-T ports (4 with PoE)
- 2x Gigabit ports (RJ-45 & SFP)
- 4x CANBus ports for console frames and accessory panels
The Axia QOR.32 supports mixing consoles of up to 24 faders or 3 iQ mixing console modules. Configure up to 12 Livewire streams (inbound and outbound) and use PC-Radio to easily connect multiple Livewire streams over a single network cable. Discover the ultimate audio solution for your broadcast studio.
