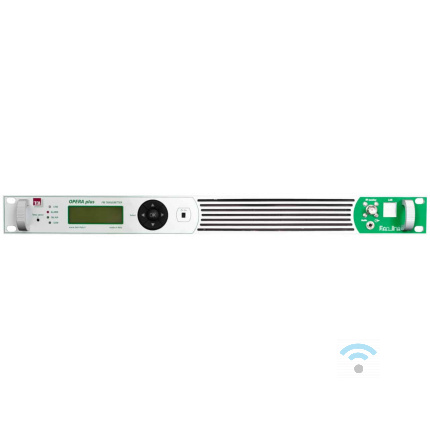

TEM Broadcast 10W Exciter
€ 1.190,00
The TEM OPERA Plus 10W is a professional FM exciter with digital control, LDMOS amplifier, low power consumption and full protection. Ideal for unmanned transmitters.
Discover the TEM OPERA Plus 10W FM Exciter: a powerful, energy-efficient and compact FM transmitter designed for reliable operation even in unmanned installations. Thanks to the latest generation of LDMOS amplifiers, this 10W exciter offers excellent performance and an exceptionally low consumption cost. All settings, measurements and protection are fully microprocessor controlled and easily operated from the front panel or remotely via TCP/IP, SNMP or GSM.
This 1U rack module is ideal for local radio stations or as a GAP filler. With its built-in stereo coder, optional RDS module and digital AES-EBU input, it is ready for professional applications.
Product specifications
-
Power: 10 watt FM transmitter (adjustable)
-
Frequency setting: per 10 kHz / 100 kHz via front panel or remotely
-
Frequency stability: < ±300 Hz (typical), PLL synthesizer
-
Modulation: direct VCO (F3), ±75 kHz deviation
-
Amplifier technology: 6th generation LDMOS
-
Audio sources: L/R (XLR), AES/EBU, MPX (BNC), optional IP audio
-
Audio switching: Automatic (L+R, MPX or mixed)
-
Stereocoder and optional RDS encoder
-
Harmonic filter and directional coupling built in
-
Cooling: forced airflow, easily replaceable fans
-
Operation: 4-line LCD display and/or remote via TCP/IP, SNMP, GSM
-
Telemetry & alarms: via GSM, TCP/IP, SNMP/SMTP
-
Operating temperature: -5°C to +45°C
More info? download the technical information.
TEM Broadcast 10W Opera plus datasheet
| Weight | 6 kg |
|---|---|
| Dimensions | 48,5 × 48 × 4,4 cm |
| Brand |
TEM Broadcast |
| Band |
FM |
| Rackmount |
1 HE |
| Connector type |
N Connector |
TEM Broadcast has been known since 1977 as a leading Italian manufacturer of high quality FM and TV transmitter systems. From their facility in Binasco, Milan, TEM provides reliable and energy-efficient solutions for radio and television broadcasting, including RF components, filters, combiners and antenna systems.
With more than 10,000 transmitters installed worldwide and a network of more than 40 distributors on five continents, TEM is a fixture in the international broadcast industry. Their products are distinguished by robust build quality and extensive monitoring capabilities, making them ideal for both large broadcasters and local stations.
