Meet the DB9009-TX, a powerful second-generation multi-protocol Audio over IP Encoder. This versatile device is ideal for both novice and experienced announcers and can be easily operated via any HTML5 web browser.
Product specifications:
- Audio Encoder: Up to 2 user-selectable sources plus 1 fixed (PCM)
- Codec Options: HE-AAC (v.1 and v.2), MPEG-1 Layer 3 or raw PCM
- Sample Rates: 32 kHz, 44.1 kHz and 48 kHz
- Channels: 1 or 2
- Bit Rates: Up to 88 kbps (HE-AAC); Up to 320 kbps (MPEG-1); Up to 1536 kbps (PCM)
- Encoding Mode: Mono and Stereo, Joint Stereo or Dual Channel
- Emphasis: 50µs, CCITT J.17 or none
- IP Audio Server: SHOUTcast/Icecast compatible TCP/IP stream server with up to 10 clients connected simultaneously
- Icecast Source Client: Up to 3 independent streams
- SHOUTcast Source: Up to 3 independent streams
- RTP Sender: Unicast/Multicast RTP Sender with up to 3 independent streams

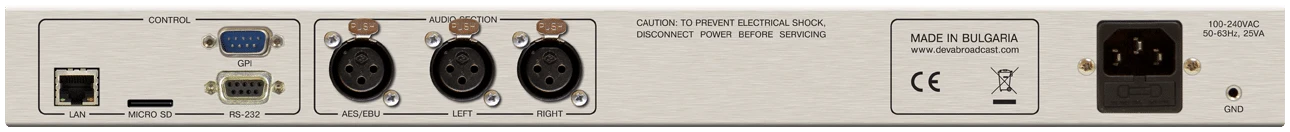

- Analog audio input: 2 x XLR, balanced with adjustable level
- Digital Audio input: XLR, AES/EBU with built-in sample rate converter

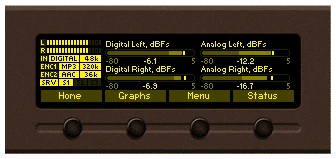

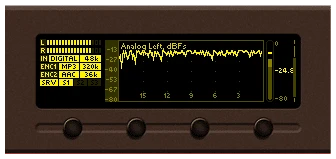

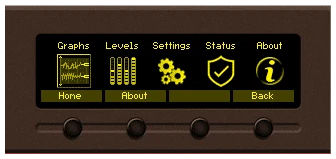

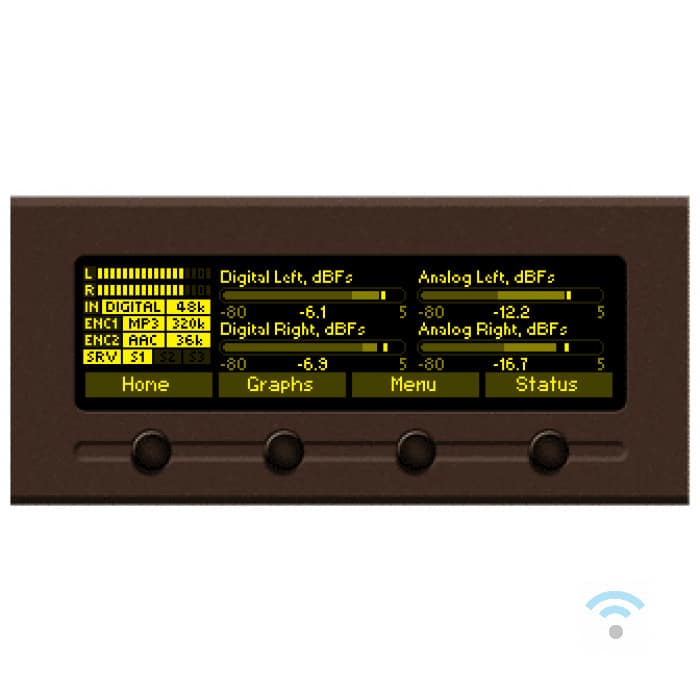

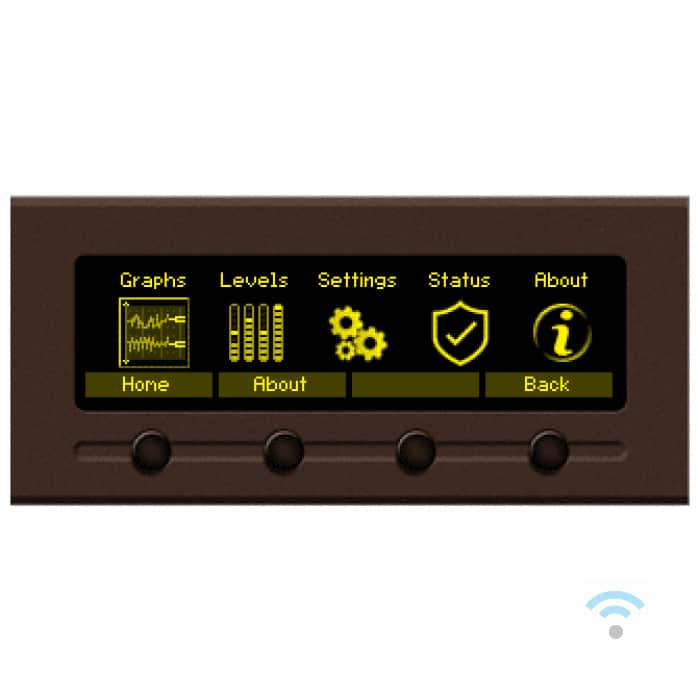

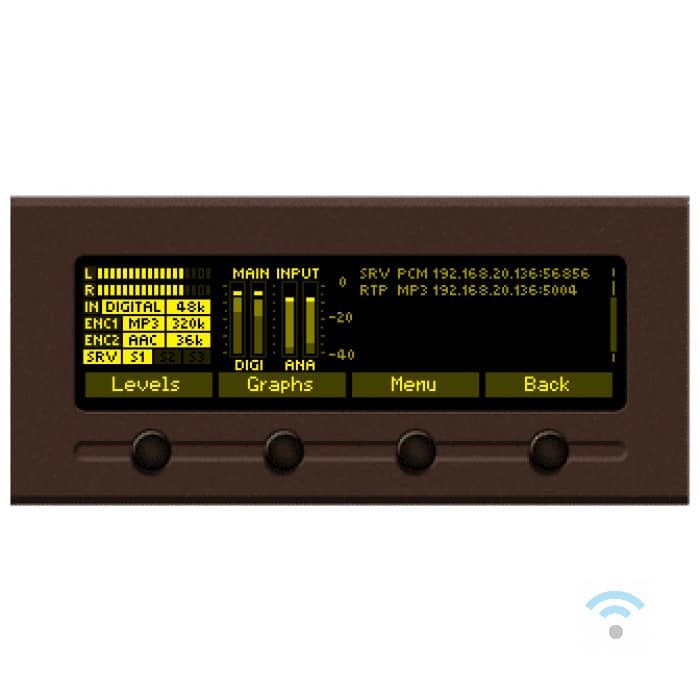

- Display: High-quality OLED screen
- Status indicators: 5 LEDs for quick diagnostics
- Web interface: complete control and status information via standard web browser
- Network: RJ-45 Ethernet with UPnP support for easy discovery in local area networks
- Operating conditions: Temperature: 10°C – 45°C, Humidity: <75%, non-condensing
- Power supply: 100-240V / 50-60 Hz with IEC320 connector, 10VA power consumption
- Dimensions: 485 x 44 x 180 mm, Weight: 2.501 kg
The DB9009-TX offers excellent audio performance and features an OLED screen for easy operation, and can be easily integrated into your existing audio systems. This reliable device ensures long-term reliability and supports easy firmware updates both on-site and remotely via the secure WEB Interface.
For more info see technical fische: Deva db9009-tx
Quick start manual: Deva db9009 Quick start manual
