Prima 1000

 5.390,00

Discover the Aqua Broadcast PRIMA 1000 FM transmitter. High efficiency, 1000W power. Remote management with SNMP and WEB. Reliable 24/7 broadcasting.Discover the Aqua Broadcast PRIMA 1000 FM transmitter. High efficiency, 1000W power. Remote management with SNMP and WEB. Reliable 24/7 broadcasting.

SKU: prima1000 Category: Tags: , ,

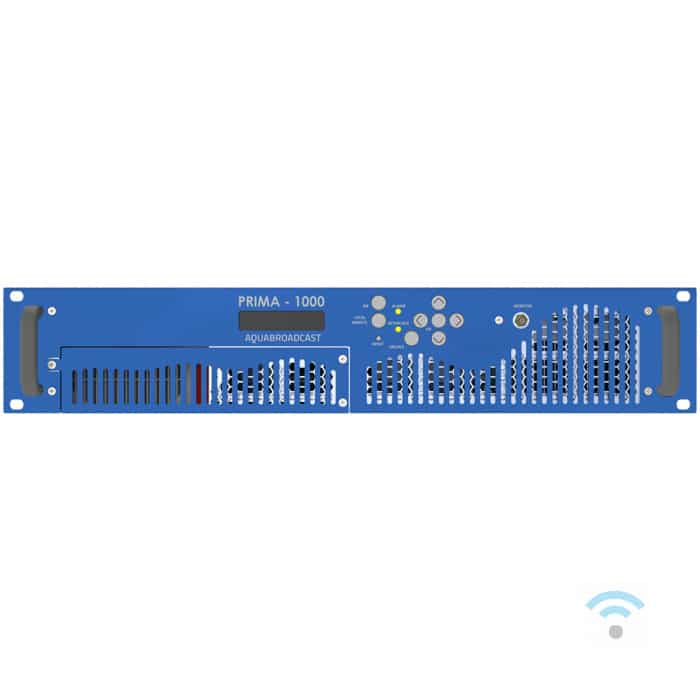

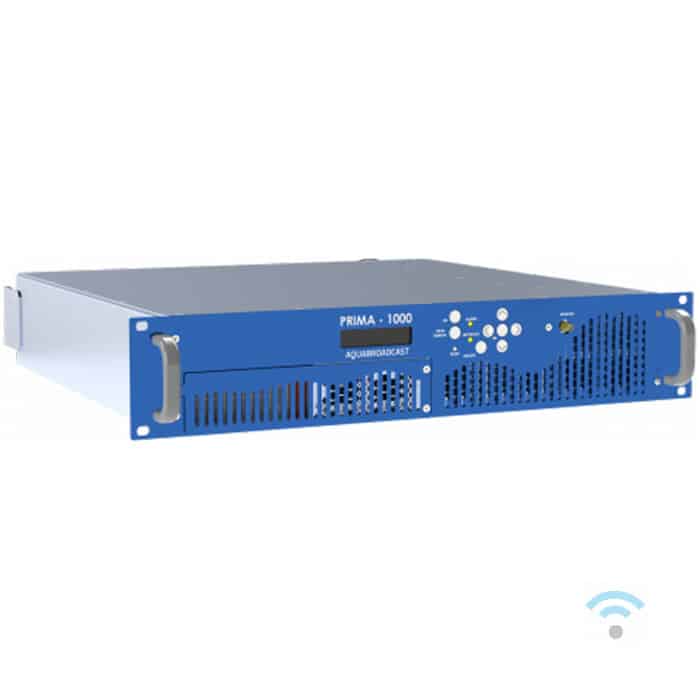

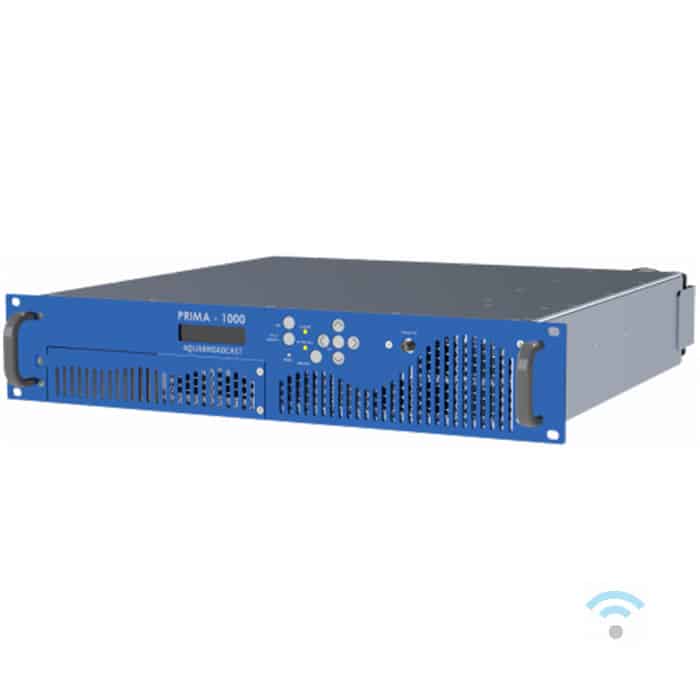

Discover the Aqua Broadcast PRIMA 1000 FM transmitter, an advanced and robust transmitter with high efficiency technology. The wideband, tunable design between 87.5-108 MHz allows easy installation. The bright LCD display shows all transmitter information, and the front-mounted buttons provide ease of use for quick adjustments. With its compact 2RU design and 1000W output including stereo encoder, this transmitter is suitable for any situation with analog and digital audio inputs.

Effortlessly manage the PRIMA 1000 remotely via the WEB with secure connections, SNMP, and comprehensive remote control. With technical features such as an operating bandwidth of 87.5-108 MHz, frequency stability of ±1 ppm and output power of 1000W, this transmitter offers reliability for 24/7 broadcasts.

TECHNICAL FEATURES:

  • Operating bandwidth: 87.5 ÷ 108 MHz
  • Frequency stability: ± 1 ppm
  • Output power: 1000 W
  • Output range: 10% to maximum power
  • Output connector: 7/16
  • Harmonic attenuation: ≥ 80 dB
  • Frequency deviation: ± 75 KHz … ± 100 KHz

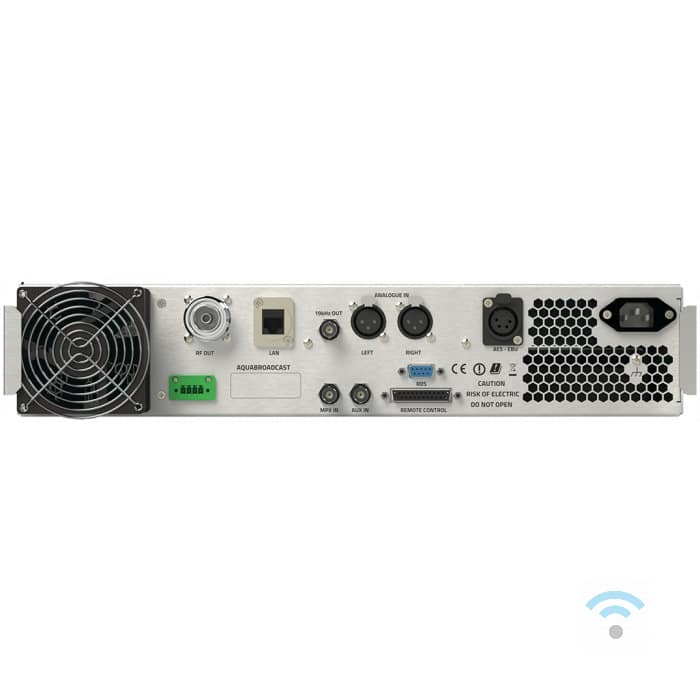

AUDIO INPUTS:

  • MPX input: Band 40 Hz … 100 KHz, impedance > 2KΩ or 600Ω
  • MONO input: 40 Hz … 15 KHz, impedance > 2KΩ or 600Ω
  • AUDIO AUX input: 21 KHz … 100 KHz, impedance > 2KΩ or 600Ω
  • L and R inputs: Stereocoder, impedance > 2KΩ or 600Ω

STEREO OUTPUT SPECIFICATIONS:

  • Amplitude/frequency: < ± 0.15 dB (30 Hz – 15 KHz)
  • Total harmonic distortion noise: 0.03% at 400 Hz
  • S/N: > 70 dB (f=400 Hz with Δf ± 75 kHz)
  • Linear crosstalk: < – 55 dB (40 Hz – 15 kHz)

CONTROL AND MONITORING:

  • Local: Graphic display with push buttons
  • Remote: SNMP / WEB pages / TLS-TLC

GENERAL SPECIFICATIONS:

  • Mechanical dimensions: W x H x D: 483 mm x 45 mm (2RU) x 500 mm
  • Weight: 8 kg
  • Power supply: 90-264 VAC, Universal
  • Efficiency: > 75%

ENVIRONMENTAL CONDITIONS:

  • Max altitude: 4000 m
  • Operating temperature range: -5 ÷ 45°C
  • Maximum relative humidity: 95% @ 35°C non-condensing

More info? download the technical information.
Technical information PRIMA transmitters

Brand

Aqua Broadcast

Power output (Watt)

1000

Band

FM

Connector type

N Connector

Rackmount

2 HE
