The BW Broadcast TX 30 V3 is an advanced 30W FM transmitter ideal for LPFM stations, community radio, emergency broadcasts, military applications or as a reliable backup transmitter for national broadcasters. This transmitter offers excellent sound quality thanks to its integrated multi-band DSPX audio processor, eliminating the need for a separate processor and making your station sound great right out of the box.
Features and Functionalities
With a DDS exciter and ultra-low distortion modulator, the TX 30 V3 takes the legendary reliability and purity of earlier models to the next level. The built-in Web-based control platform provides easy access to settings and monitoring, including e-mail alerts, SNMP monitoring, silence detection and advanced alarms. These features provide peace of mind and save time by quickly identifying and resolving problems.
The TX 30 V3 features a standard, configurable parallel GPI/O interface for integration with your station control equipment. This allows backup audio or backup transmitters to be turned on automatically in case of problems.
Product specifications
- RF
- Harmonics: better than -75 dBc
- Spurious: <-90 dBc
- Frequency range: 87.5 – 108 MHz
- Frequency steps: 10KHz to 100KHz selectable
- Frequency selection: user interface or web remote control
- Frequency control: Direct to channel DDS
- Frequency stability: <+/- 100 Hz
- Modulation Type: DDS
- Synchronous AM Noise: >60dB% min (at normal deviation)
- Asynchronous AM Noise: >70dB
- RF Connector: N-type 50 Ohm
- Audio & MPX I/O
- MPX input/output connector: 2 X BNC IN / 2 X BNC OUT
- MPX input/output impedance: 10k
- MPX input level: -10dB to +10dB (adjustable)
- MPX input/output response: +/- 0.01 dB, 5 Hz to 100 kHz
- Audio input connectors: XLR balanced
- Analog input impedance: 10 kOhm
- AES/EBU sampling rates: 32KHz-192KHz (MPX OVER AES READY)
- Stereo
- Subcarrier generation: DSP
- Pilot: 19 kHz +/- 1 Hz (adjustable)
- Pilot generation: 0dBu – 12dBu adjustable
- Output level: 80dB at 19kHz (DSP based)
- Overshoot filter clipping: DSP based
- Spurious: >-60dBr / >-80dBr
- Stereo separation: >50dB (20Hz – 15kHz)
- Other Specifications
- RF Power: 5W – 30W
- Voltage input: 100-265 VAC
- Average power consumption: 65W at 30W RF
- Hallmarks: UL / TUV / CE
- Dimensions: 485mm x 380mm x 50mm
- Weight: 3.7 kg
- User Interface: 3 buttons, rotary encoder & 256×64 graphics display

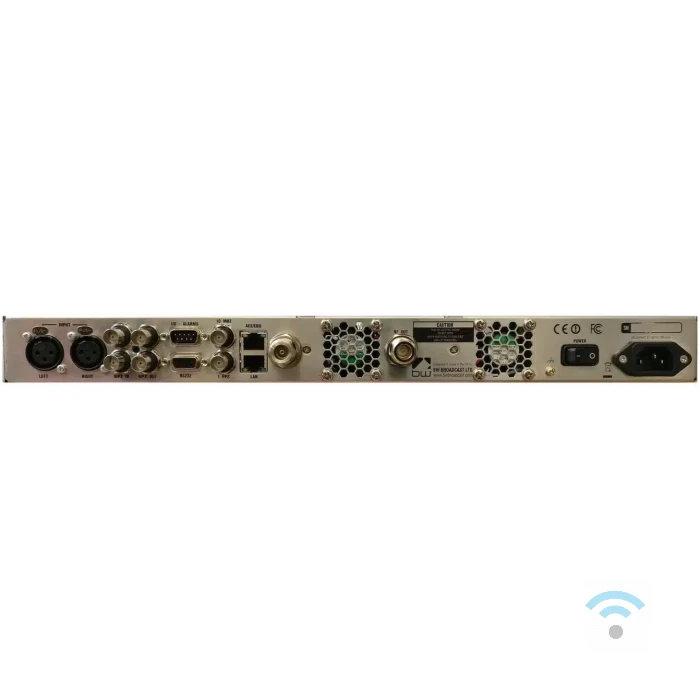

- External control: I/O Alarms D9-type Male; RS232 D9-Type Female, Telnet and Web remote RJ45 Ethernet
- Additional: GPS inputs for SFN application, XLR analog & digital inputs, Dual MPX / SCA inputs and outputs, Lab-grade DSP stereo generator, RDS generator, DSPX multi-band processor inside, VSWR and temp monitoring, Events, alarms and actions, RS232, Telnet, SNMP, Mobile ready web browser control
See the data sheet for more information: BW Broadcast TX30 Datasheet
